Upgrade your cable management system with our Electro-Zinc Basket Trays, designed for efficient, lightweight, and corrosion-resistant cable containment. These trays are ideal for commercial, industrial, and IT infrastructure applications, offering durability and easy installation.
-
Material: High-quality electro-galvanized steel for enhanced corrosion resistance
-
Depth Options: Available in 60mm for optimal cable support
-
Lightweight & Strong: Provides excellent load capacity while remaining easy to handle
-
Installation: Quick and secure using compatible couplers, brackets, and suspension systems
-
Applications: Suitable for data centers, offices, factories, and electrical installations
Designed for reliable and organized cable routing, our electro-zinc basket trays provide a cost-effective solution for modern infrastructure needs. For more information or to discuss your specific requirements, please contact us at sales@directchannel.uk.com or call 0121 270 8507.
Showing 1–12 of 86 results
-
M6 J-Bolt & Nut – For Basket & Tray Lid – Hot Dipped Galvanised (HDG)
Code: CTB/JB-N £0.42 ex. VAT- Thread Size: M6
- Type: J-Bolt with Flange Nut
- Material: S235 Steel
- Finish: Hot Dipped Galvanised (HDG) – TS EN ISO 1461
- Application: For securing basket trays and tray lids
- Sold: Individually (1 Bolt + 1 Nut)
£0.50 inc. VAT -

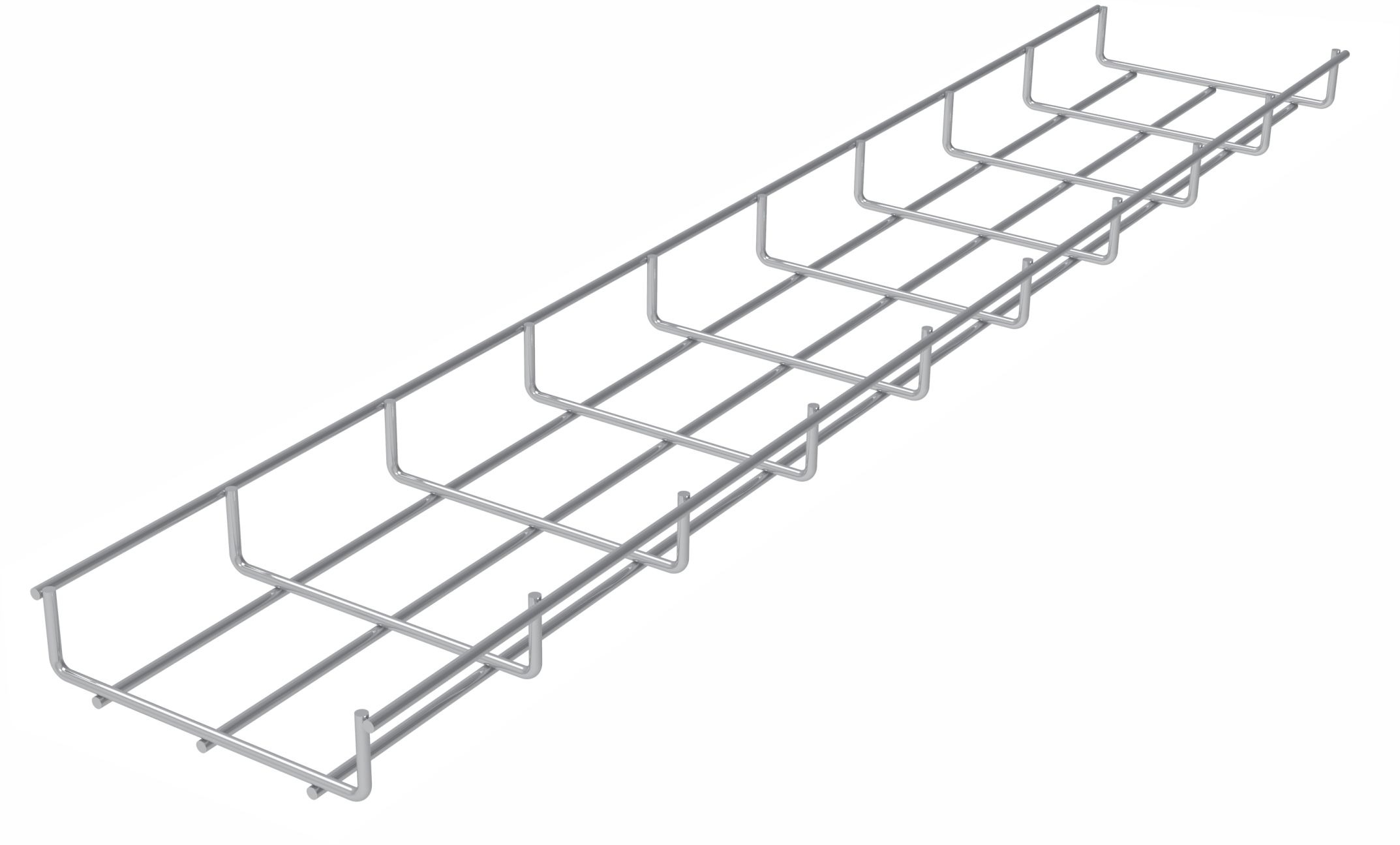

60 x 35mm Cable Basket Tray x 3 Meter
60mm Cable Basket Tray 60mm Width x 35mm Depth x 3 Meter Length Made from 4mm Thick Heavy Gauge Steel Wire. Welded and formed into shape before final surface treatment. Wire Configuation / Spacing : 50mm x 100mm Electro Zinc Plated - For Internal Use. Load rating - 27kg / Based on 1.5m Support Distance. Sold IndividuallyCode: CTB60/35 £4.13 ex. VAT
£4.96 inc. VAT -
60mm Cable Basket Tray x 3 Meter
60mm Cable Basket Tray 60mm Width x 60mm Depth x 3 Meter Length Made from 4mm Thick Heavy Gauge Steel Wire. Welded and formed into shape before final surface treatment. Wire Configuation / Spacing : 50mm x 100mm Electro Zinc Plated - For Internal Use. Load rating - 34kg / Based on 1.5m Support Distance. Sold IndividuallyCode: CTB60/60 £6.08 ex. VAT
£7.30 inc. VAT -
100 x 35mm Cable Basket Tray x 3 Meter
100mm Cable Basket Tray 100mm Width x 35mm Depth x 3 Meter Length Made from 4mm Thick Heavy Gauge Steel Wire. Welded and formed into shape before final surface treatment. Wire Configuation / Spacing : 50mm x 100mm Electro Zinc Plated - For Internal Use. Load rating - 27kg / Based on 1.5m Support Distance. Sold IndividuallyCode: CTB100/35 £5.42 ex. VAT
£6.50 inc. VAT -
100mm Cable Basket Tray x 3 Meter
100mm Cable Basket Tray 100mm Width x 60mm Depth x 3 Meter Length Made from 4mm Thick Heavy Gauge Steel Wire. Welded and formed into shape before final surface treatment. Wire Configuation / Spacing : 50mm x 100mm Electro Zinc Plated - For Internal Use. Load rating - 47kg / Based on 1.5m Support Distance. Sold IndividuallyCode: CTB100/60 £7.00 ex. VAT
£8.40 inc. VAT -
150 x 35mm Cable Basket Tray x 3 Meter
150mm Cable Basket Tray 150mm Width x 35mm Depth x 3 Meter Length Made from 4.5mm Thick Heavy Gauge Steel Wire. Welded and formed into shape before final surface treatment. Wire Configuation / Spacing : 50mm x 100mm Electro Zinc Plated - For Internal Use. Load rating - 27kg / Based on 1.5m Support Distance. Sold IndividuallyCode: CTB150/35 £6.25 ex. VAT
£7.50 inc. VAT -
150mm Cable Basket Tray x 3 Meter
150mm (6 Inch ) Cable Basket Tray 150mm Width x 60mm Depth x 3 Meter Length Made from 4.5mm Heavy Gauge Steel Wires Welded and formed into shape before final surface treatment. Wire Configuation / Spacing : 50mm x 100mm Electro Zinc Plated - For Internal Use. Load Rating - 48kg / Based on 1.5m Support Distance. Sold IndividuallyCode: CTB150/60 £9.58 ex. VAT
£11.50 inc. VAT -
200 x 35mm Cable Basket Tray x 3 Meter
200mm Width x 35mm Depth x 3 Meter Length Made from 4.5mm Thick Heavy Gauge Steel Wire. Welded and formed into shape before final surface treatment. Wire Configuation / Spacing : 50mm x 100mm Electro Zinc Plated - For Internal Use. Load rating - 28kg / Based on 1.5m Support Distance. Sold IndividuallyCode: CTB200/35 £7.33 ex. VAT
£8.80 inc. VAT -
200mm Cable Basket Tray x 3 Meter
200mm (8 Inch ) Cable Basket Tray 200mm Width x 60mm Depth x 3 Meter Length Made from 4.5mm Thick Heavy Gauge Steel Wire. Welded and formed into shape before final surface treatment. Wire Configuation / Spacing : 50mm x 100mm Electro Zinc Plated - For Internal Use. Load Rating - 48kg / Based on 1.5m Support Distance. Sold IndividuallyCode: CTB200/60 £10.42 ex. VAT
£12.50 inc. VAT -

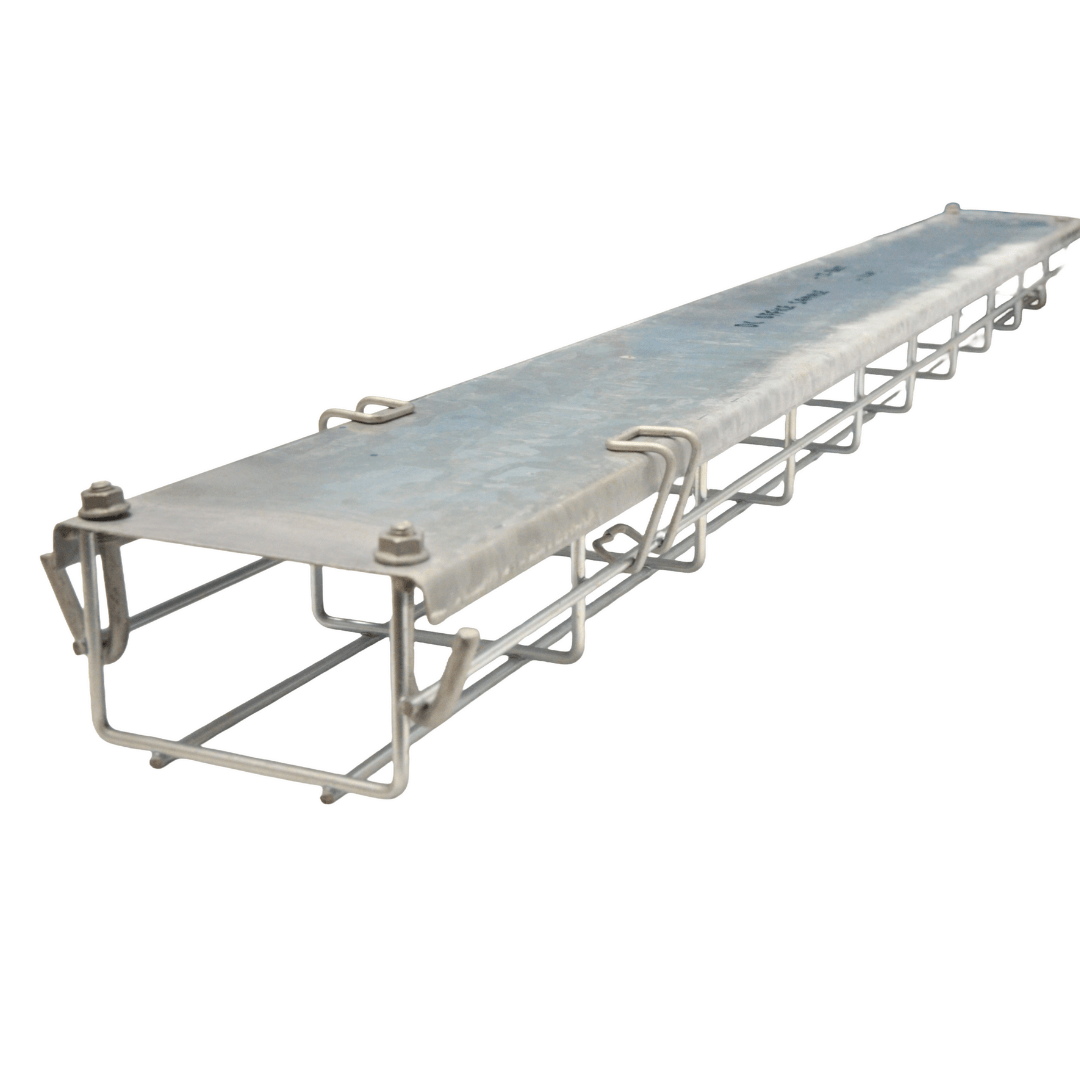

100mm Basket Tray Lid – 1.5 Metre – Hot Dipped Galvanised (HDG)
Code: CTB100G-LD £7.83 ex. VATKey Features
- Type: Basket Tray Lid
- Width: 100mm
- Length: 1.5 Metre (1500mm)
- Finish: Hot Dipped Galvanised (HDG)
- Material: High-quality steel
- Application: Protects and secures basket tray cable runs
- Fixing Options: Secure using an M6 J-Bolt & Nut (by drilling holes in the lid) or use the clip system (see product image) for hassle-free installation
£9.40 inc. VAT -
150mm Basket Tray Lid – 1.5 Metre – Hot Dipped Galvanised (HDG)
Code: CTB150G-LD £10.42 ex. VATKey Features
- Type: Basket Tray Lid
- Width: 150mm
- Length: 1.5 Metre (1500mm)
- Finish: Hot Dipped Galvanised (HDG)
- Material: High-quality steel
- Application: Protects and secures basket tray cable runs
- Fixing Options: Secure using an M6 J-Bolt & Nut (by drilling holes in the lid) or use the clip system (see product image) for hassle-free installation
£12.50 inc. VAT -
300mm Basket Tray Lid – 1.5 Metre – Hot Dipped Galvanised (HDG)
Code: CTB300G-LD £15.50 ex. VATKey Features
- Type: Basket Tray Lid
- Width: 150mm
- Length: 1.5 Metre (1500mm)
- Finish: Hot Dipped Galvanised (HDG)
- Material: High-quality steel
- Application: Protects and secures basket tray cable runs
- Fixing Options: Secure using an M6 J-Bolt & Nut (by drilling holes in the lid) or use the clip system (see product image) for hassle-free installation
£18.60 inc. VAT
